Oil Carryover in Screw Compressors: Causes and Prevention
Oil carryover presents a major challenge that negatively affects screw compressor performance and system dependability and compressor lifespan. The compressor system experiences this phenomenon when excessive oil flows through it which results in system contamination and higher maintenance requirements and operational breakdown risks. Oil carryover understanding is essential for both people who control industrial compressors and those who maintain equipment in demanding environments because it affects system performance and operational expenses. This article will explore the key causes of oil carryover, its implications on compressor systems, and effective prevention strategies. You will receive practical methods to solve this common problem which helps maintain your organization running at its best throughout the entire learning process.
Understanding Oil Carryover
What is Oil Carryover?
Oil carryover refers to the unintended transfer of lubricating oil from the compressor system into the compressed air stream. The system fails to achieve full oil separation because the compressor uses oil both for lubrication and cooling purposes. Oil carryover occurs because the system lacks proper oil separators and contains excessive oil and uses oil of insufficient quality and maintenance procedures are not followed. The existence of oil within compressed air results in contamination which decreases equipment performance and causes greater damage to downstream parts, thus making it essential to maintain regular system inspections while implementing proper filtration methods.
Causes of Oil Carryover in Compressors
The improper design or condition of oil separators together with excessive oil injection and high operating temperatures which decrease oil viscosity create conditions which enable oil carryover from compressors. Oil can escape containment through seal failures or seal degradation which occurs in essential parts like piston rings of reciprocating compressors and shaft seals of rotary compressors. Contaminated or degraded oil can also lose its intended properties, further contributing to carryover. The problem becomes worse when organizations do not maintain their systems properly and they have insufficient filtration and use wrong oil types which do not match their compressor specifications, making it necessary to conduct regular inspections while following manufacturer instructions for effective prevention.
⚠️ Key Factors Leading to Oil Carryover
- Improper design or deteriorated condition of oil separators
- Excessive oil injection into the compression chamber
- High operating temperatures reducing oil viscosity
- Seal failures in piston rings and shaft seals
- Contaminated or degraded lubricating oil
- Insufficient filtration systems
- Use of incorrect oil types for specific compressor models
Impact of Oil Carryover on Compressed Air Systems
Oil carryover in compressed air systems creates major detrimental effects which decrease system performance and affect all end-user operations. The system causes waste material to block and damage downstream equipment which includes filters and dryers and pneumatic equipment, resulting in decreased operational performance and shorter equipment lifespan. The presence of oil in the compressed air supply can also compromise product quality in processes requiring high-purity air, such as in food and pharmaceutical industries. Oil contamination creates environmental and safety hazards because oil-containing air which gets released without proper treatment creates violations of regulations. The solution for oil carryover problems requires the installation of advanced filtration systems and the choice of suitable lubricants and the execution of planned maintenance procedures which help in discovering and fixing system problems.
| Impact Area | Consequences | Affected Industries |
|---|---|---|
| Equipment Performance | Blockage and damage to filters, dryers, and pneumatic equipment | Manufacturing, Automotive |
| Product Quality | Contamination of products requiring high-purity air | Food, Pharmaceutical |
| Environmental Compliance | Regulatory violations from untreated oil-containing air | All Industries |
| Operational Efficiency | Decreased performance and shortened equipment lifespan | Industrial, Chemical |

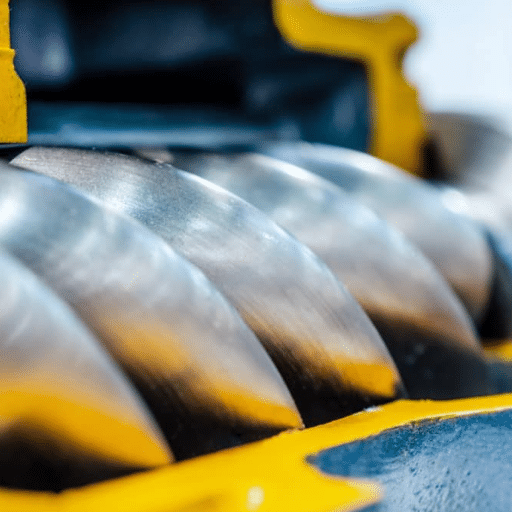

Factors Influencing Oil Carryover
Role of Compressor Oil in Oil Carryover
The function of compressor oil in oil carryover occurs because the oil provides necessary lubrication and cooling and sealing functions to compression systems. The problem of oil carryover becomes worse through three specific factors which include improper selection and degraded oil quality and excessive quantities of oil. The compressed air stream contains oils which vaporize at low temperatures and stable thermal properties. The combination of high temperatures and overloading and worn-out seals leads to higher rates of oil movement throughout the system. High-quality compressor oil matching the system specifications needs to be used together with system maintenance and monitoring to decrease oil carryover and boost system efficiency.
💡 Critical Oil-Related Factors
- Improper oil selection for specific compressor requirements
- Degraded oil quality due to thermal breakdown
- Excessive oil quantities in the system
- Low vaporization temperature oils
- Insufficient thermal stability properties
Fluid Flow Dynamics in Screw Compressors
Screw compressors use their rotor movement to interact with gas which creates their fluid flow dynamics. The male and female rotors combine to form compression chambers which seal off gas until it becomes compressed and subsequently released. The efficiency of this process depends on factors such as rotor profile design, clearances, and rotational speed. Advanced computational fluid dynamics (CFD) modeling enables engineers to study and improve flow patterns by reducing pressure losses and turbulence while increasing volumetric efficiency and overall performance. Proper lubrication and maintaining precise tolerances are essential for achieving smooth fluid movement which prevents both leakage and performance decline.
Measurement and Monitoring Techniques
Modern measurement and monitoring techniques use advanced technologies to achieve accurate and trustworthy results in fluid and mechanical system operations. The two standard techniques for flow visualization and velocity measurement include laser Doppler velocimetry (LDV) and particle image velocimetry (PIV). The system uses pressure transducers and flow meters to continuously track pressure and volumetric flow rate measurements and uses thermal imaging and infrared sensors to measure temperature spread throughout the system. Advanced sensors that work with IoT (Internet of Things) platforms create the ability to gather and analyze data in real time which helps improve predictive maintenance and system performance. These techniques ensure precise control and optimization of operational parameters.
| Monitoring Technique | Application | Key Benefits |
|---|---|---|
| Laser Doppler Velocimetry (LDV) | Flow visualization and velocity measurement | Non-intrusive, high accuracy |
| Particle Image Velocimetry (PIV) | Flow pattern analysis | Full-field measurements |
| Pressure Transducers | Continuous pressure monitoring | Real-time data acquisition |
| Thermal Imaging | Temperature distribution analysis | Early fault detection |
| IoT-enabled Sensors | Real-time data gathering and analysis | Predictive maintenance capabilities |
Prevention Strategies for Oil Carryover
Regular Maintenance Practices
Regular maintenance procedures need to be performed to stop oil from leaking into mechanical equipment and industrial systems. The main procedures for this process require filters to be changed at predetermined times which maintains their ability to separate materials. The process involves two parts which include checking condensate drains for blockage and cleaning while monitoring compressor operations to discover oil leaks. Operators maintain equipment at peak efficiency through predictive maintenance tools and IoT sensors which enable them to detect upcoming equipment failures. Proactive actions for oil control lead to higher system dependability together with extended time of operation without failures.
✓ Essential Maintenance Checklist
- ✔ Replace filters at predetermined intervals
- ✔ Check condensate drains for blockages
- ✔ Clean drainage systems regularly
- ✔ Monitor compressor operations for oil leaks
- ✔ Utilize predictive maintenance tools
- ✔ Deploy IoT sensors for failure detection
- ✔ Implement proactive oil control measures
Equipment Upgrades for Reduced Oil Carryover
Compressed air systems need advanced equipment upgrades to diminish oil contamination problems. Current technologies now enable the installation of high-efficiency coalescing filters which effectively remove both fine oil droplets and aerosolized contaminants from the atmosphere. The system will achieve complete oil contamination control when companies select oil-free compressors as their equipment choice. The system benefits from enhanced separation efficiency through the installation of advanced separators together with mist eliminators. The implementation of IoT-based automated monitoring systems enables operators to receive instant updates about system performance which helps them to resolve inefficiencies without delay. The system improvements result in higher system dependability together with better air quality and increased overall operational efficiency.
| Equipment Upgrade | Function | Expected Outcome |
|---|---|---|
| High-Efficiency Coalescing Filters | Remove fine oil droplets and aerosols | Superior air purity |
| Oil-Free Compressors | Eliminate oil contamination at source | Complete contamination control |
| Advanced Separators | Enhanced oil-air separation | Improved separation efficiency |
| Mist Eliminators | Capture oil mist particles | Reduced downstream contamination |
| IoT-Based Monitoring Systems | Real-time performance tracking | Rapid inefficiency resolution |
Choosing Oil-Free Air Solutions
The use of oil-free air solutions provides better air quality for industries which need to maintain pureness through the elimination of oil contamination risk. The latest oil-free compressors use advanced technology, such as scroll or water-injected screw designs, to deliver highly efficient performance while maintaining consistent reliability. The maintenance requirements for these systems are lower than those of oil-lubricated systems because they do not require oil changes and separator element replacements. Companies achieve regulatory compliance through the implementation of oil-free air systems which lead to decreased operational expenses and improved sustainability initiatives.
🌟 Benefits of Oil-Free Air Solutions
- Elimination of oil contamination risk
- Superior air quality for sensitive applications
- Advanced scroll or water-injected screw designs
- Reduced maintenance requirements
- No oil changes or separator replacements needed
- Enhanced regulatory compliance
- Decreased operational expenses
- Improved sustainability performance
Dealing with Contamination
Identifying Compressed Air Contamination Sources
The three main sources of compressed air contamination include the surrounding environment and the compressor and its piping system. The compressor intake process brings in outdoor air which contains particulate matter and water vapor and hydrocarbons. The compressor introduces potential contaminants through oil carryover from lubricated systems and through internal wear which releases particulates. The air distribution system introduces rust and scale and condensation to pipelines during air movement. The system needs filtration and drying equipment and maintenance procedures to provide clean and dependable compressed air.
| Contamination Source | Types of Contaminants | Entry Point |
|---|---|---|
| Surrounding Environment | Particulate matter, water vapor, hydrocarbons | Compressor intake |
| Compressor System | Oil carryover, wear particles | Lubrication and internal components |
| Piping System | Rust, scale, condensation | Air distribution network |
Repairing and Maintaining Air Compressors
Air compressors need their performance to be monitored through ongoing inspection and cleaning work and the replacement of any components which show signs of wear. The main work procedures need to include periodic inspections which help detect air filter clogs and the replacement of filters and the inspection of hoses and seals for leaks and the monitoring of oil levels in lubricating systems which helps prevent system overheating and friction damage. The operational areas need condensate drains to protect against moisture problems which include corrosion. The combination of advanced monitoring tools with analytics enables organizations to use predictive maintenance which detects machine failure points before they happen and decreases downtime while increasing compressor durability.
🔧 Best Maintenance Practices
- Conduct periodic inspections to detect filter clogs
- Replace filters according to manufacturer schedule
- Inspect hoses and seals for signs of leaks
- Monitor oil levels in lubrication systems
- Maintain condensate drains to prevent moisture buildup
- Utilize advanced monitoring tools with analytics
- Implement predictive maintenance protocols
- Document all maintenance activities for trend analysis
Removing Contaminants from Compressed Air Systems
Modern systems use advanced filtration plus drying and separation methods to achieve effective contamination removal from compressed air networks. Particulate filters are used to capture solid debris which coalescing filters remove oil aerosols and desiccant or refrigerated dryers eliminate water vapor to ensure air dryness. Carbon filters serve to remove both odors and vapors from applications that require high sensitivity. The correct size and upkeep of filtration systems enables organizations to meet air quality requirements through ISO 8573-1 which improves system efficiency while safeguarding downstream operations against contamination problems.
| Filtration Method | Contaminants Removed | Application |
|---|---|---|
| Particulate Filters | Solid debris and dust particles | General air cleaning |
| Coalescing Filters | Oil aerosols and liquid droplets | Oil contamination control |
| Desiccant Dryers | Water vapor (adsorption) | Ultra-dry air requirements |
| Refrigerated Dryers | Water vapor (condensation) | Standard moisture removal |
| Carbon Filters | Odors and vapors | Sensitive applications |
Conclusion
Summary of Key Points
The air quality which comes from compressed air supplies needs to meet specific standards because it directly affects industrial operations and their productivity and safety. The system needs to filter out solid particles and water vapor and oil aerosols and odors through multi-stage filtration systems to meet its main requirements. The air quality meets the established standards through ISO 8573-1 because it protects specific application needs which decrease the chance of contamination together with equipment failures. The system needs regular maintenance work together with filter equipment which has proper specifications to achieve optimal results and prevent system breakdowns.
📋 Critical Takeaways
- Compressed air quality directly impacts industrial productivity and safety
- Multi-stage filtration systems are essential for removing diverse contaminants
- ISO 8573-1 standards provide benchmarks for air quality compliance
- Regular maintenance prevents system breakdowns and contamination
- Proper filter specifications ensure optimal system performance
Future Considerations for Air Systems
The upcoming developments of air systems will concentrate on three main aspects which include improving energy efficiency and adding intelligent monitoring systems and creating more sustainable solutions. The implementation of energy-efficient designs which include variable speed compressors together with advanced flow control systems will decrease operational expenses while protecting the environment. The smart air systems which use IoT-enabled sensors can track their current performance through real-time data transmission which enables them to conduct predictive maintenance activities that improve their operational dependability. The development of environmentally friendly filtration materials together with a decrease in non-renewable resource usage will assist air systems in achieving international sustainability objectives. The new technologies will fulfill the industrial needs that emerge during the present time while they maintain alignment with the changing environmental protection laws.
🚀 Future Trends in Air System Technology
Energy Efficiency: Variable speed compressors and advanced flow control systems
Intelligent Monitoring: IoT-enabled sensors with real-time performance tracking
Sustainability: Eco-friendly filtration materials and reduced resource consumption
References
-
Screw Compressor Oil Carryover – University of Wisconsin: Discusses oil separation basics, including separation stages and factors affecting oil carryover.
-
A Quantitative Method to Determine Oil Carryover from High-Pressure Compressors – Purdue University: Explores oil contamination in compressors and its dependency on compressor types.
-
Design of the Oil Injected Refrigeration System and Its Effect on Screw Compressors – Purdue University: Examines the design and impact of oil-injected screw compressors.
Frequently Asked Questions (FAQ)
❓ What is oil carryover and how does compressor oil carryover occur?
The process of oil carryover takes place when oil droplets and oil vapor escape from lubricated compressors and become part of the compressed air stream. Compressor oil carryover happens when lubricant oil used for machine operation transforms into tiny droplets or vapor, which then moves through air lines because it could not be removed during the compression and aftercooling processes.
❓ How does the presence of oil in compressed air create issues for equipment used in downstream operations and for maintaining air quality?
Even small amounts of oil contamination will result in equipment contamination which leads to decreased air quality and maintenance problems including sludge buildup and valve blockages and sensor and instrument damage. Excessive oil carryover will turn into liquid form when specific pressure and temperature conditions exist which will then build up in pipes and air receivers, resulting in operational shutdowns and product contamination and dangerous situations during processes that need clean compressed air supply.
❓ How can facilities detect and measure amounts of oil carryover in their air lines?
Detection methods include oil vapor analysers, grab sample tests, and particle counting after appropriate filtration. The process of measuring oil retention from filters and condensate separators requires ongoing assessment which allows for exact measurement of oil retention during operation. The process of testing downstream surfaces together with examining sludge deposits provides proof of ongoing oil contamination.
❓ What preventive and maintenance measures reduce oil carryover and protect air purity?
The selection of compressors together with their maintenance needs to follow proper procedures while high-efficiency separators and coalescing filters should receive standard oil type and viscosity maintenance together with filter element replacement and air line inspection needs which should occur at planned intervals. The establishment of effective preventive maintenance procedures leads to reduced oil removal failures while preventing oil buildup and stopping excessive oil discharge which needs equipment shutdown for maintenance work.
❓ How does oil removal equipment work and where should it be installed in the system?
The oil removal process employs mechanical separators together with aftercoolers and coalescing filters and activated carbon and desiccant filters in order to capture both liquid droplets and vapor. The primary separation system must be installed at the compressor with coalescing and particulate filters positioned downstream while final polishing filters must be situated close to points of use to deliver clean compressed air for essential applications. The correct staging method prevents oil from reaching the air supply system while it reduces the volume of oil that can become liquid or build up in the equipment.
❓ What steps should be taken after excessive oil carryover or sludge is discovered?
The first step requires operators to stop all operations while they isolate the contamination source to stop any further spread of the contamination which might require a temporary work stoppage. All air lines and receivers together with downstream equipment must be drained and cleaned to eliminate sludge and oil residues. The process requires inspection of separators and filters together with equipment replacement or upgrades of oil removal components and assessment of lubricant compatibility, operating conditions. The organization established corrective and preventive measures through updated maintenance schedules, staff training, and system standardization to achieve their goal of preventing future incidents.
