Single-Phase vs Three-Phase Screw Compressor: A Small Shop Electrical Guide for 5-10 HP
Dave bought a 10 HP three-phase rotary screw compressor for his two-bay auto shop in Cleveland. The price was right. The CFM rating matched his tool list. When the electrician arrived to install it, he took one look at Dave’s electrical panel and shook his head. Dave had single-phase power. The three-phase service upgrade quote was $8,500. Dave returned the compressor the next day.
Dave’s mistake is common. Most shop owners do not know what power type they have, what horsepower their electrical service can support, or whether a 10 HP single-phase screw compressor even exists. The single phase vs three phase air compressor decision is not just about motor efficiency. It is about matching the machine to the power that is already in your building.
This article shows you how to check your electrical panel in 60 seconds, what breaker and wire size you need for 5 HP, 7.5 HP, and 10 HP units, which manufacturers actually make 10 HP single-phase models, and what to do if you have already bought the wrong type. Whether you are wiring a new shop or replacing an old piston compressor, here is the practical electrical guide you need before you buy.
How Single-Phase and Three-Phase Power Actually Work
Single-Phase: One Path, High Amperage
Single-phase power uses two wires. One carries voltage. The other is neutral. In North America, residential and small commercial buildings typically receive 120/240V single-phase service. The entire electrical load travels along one path.
This creates a practical limitation for motors. A single-phase motor must generate its own rotating magnetic field using a starting capacitor or auxiliary winding. That takes extra current. The result is higher amperage draw, more heat, and significant inrush current when the motor starts. For a deeper look at compressor sizing and selection, see our 5-10 HP screw compressor complete buyer’s guide.
Three-Phase: Three Paths, Balanced Load
Three-phase power uses three hot wires plus neutral. The voltage cycles are offset by 120 degrees, creating a naturally rotating magnetic field. The motor starts smoothly without capacitors. The load is split across three paths, so amperage per wire is roughly one-third of what a single-phase motor would draw.
Three-phase motors run cooler, vibrate less, and last longer under continuous duty. They also integrate easily with variable speed drives. The downside is that three-phase service is not available at most residential addresses and many small commercial buildings.
Why It Matters for Compressor Motors
A compressor motor starts under load. The tank is at cut-in pressure. The motor must overcome that resistance immediately. Single-phase motors draw 2x to 3x their running amps during startup. Three-phase motors draw less inrush current and produce higher starting torque. This is why breaker tripping is far more common on single-phase compressors.
How to Check What Power You Have (60-Second Guide)
You do not need to be an electrician to identify your power type. Here are three quick checks.
Step 1: Read Your Panel Label
Open your main electrical panel and look for the specification sticker inside the door. Single-phase service is typically labeled “120/240V” or “240V 1PH.” Three-phase service reads “120/208V,” “230V 3PH,” or “480V 3-Phase.” The label is the most reliable indicator.
Step 2: Count Your Main Breaker Poles
Your main breaker sits at the top of the panel. A single-phase main breaker has two poles tied together with a single handle. A three-phase main breaker has three poles tied together. If you see three handles joined as one, you have three-phase power.
Step 3: Look at the Service Wires
Above the main breaker, you will see large wires entering the panel from the utility meter. Single-phase panels have two or three large wires. Three-phase panels have four or five. The hot wires may be labeled L1, L2, and L3 on three-phase systems.
If you are still unsure, call your utility company. They can tell you instantly what service type feeds your building.
Electrical Requirements by HP: The Complete Table
The table below shows the real numbers you need to plan your installation. All values are based on NEC Table 430.250 and manufacturer specifications for 2025-2026 models.
| HP | Phase | Voltage | Running Amps | Starting Amps | Min Breaker | Wire Gauge |
|---|---|---|---|---|---|---|
| 5 | Single | 230V | 18-22 | 40-60+ | 30-40A Type D | 8 AWG |
| 5 | Three | 230V | ~15 per phase | ~25 per phase | 20A | 10 AWG |
| 5 | Three | 460V | ~7.5 per phase | ~12 per phase | 15A | 14 AWG |
| 7.5 | Single | 230V | ~30-35 | 70-90+ | 50-60A Type D | 6 AWG |
| 7.5 | Three | 230V | ~22 per phase | ~35 per phase | 30A | 8 AWG |
| 7.5 | Three | 460V | ~11 per phase | ~18 per phase | 15A | 14 AWG |
| 10 | Single | 230V | 40-50+ | 100-150+ | 60-70A Type D | 4 AWG |
| 10 | Three | 230V | ~28 per phase | ~45 per phase | 40A | 6 AWG |
| 10 | Three | 460V | ~14 per phase | ~22 per phase | 20A | 10 AWG |
Why Type D Breakers Matter for Single-Phase
Standard breakers trip when they see a sudden current spike. A 5 HP single-phase compressor can draw 60 amps for a fraction of a second during startup. A standard breaker may nuisance-trip every time the compressor cycles. Type D breakers have a higher magnetic trip tolerance. They ignore brief inrush spikes while still protecting against sustained overloads. Most electricians recommend Type D breakers for any single-phase compressor over 3 HP.
Single-Phase Reality: What HP Is Actually Available?
5 HP Single-Phase: Widely Available
Nearly every manufacturer of rotary screw compressors offers a 5 HP single-phase model at 230V. Atlas Copco, Elgi, Eaton, Chicago Pneumatic, and Kaeser all have options. This is the sweet spot for single-phase shops. A dedicated 30A to 40A circuit is manageable in most buildings.
7.5 HP Single-Phase: Limited Options
At 7.5 HP, the single-phase market thins out. Quincy offers a 7.5 HP single-phase unit in their QGS series. Eaton has some configurations. Most European manufacturers stop at 5 HP for single-phase. The electrical demand is significant. You need a dedicated 50A to 60A circuit, which many small shop panels cannot accommodate without an upgrade.
10 HP Single-Phase: Rare but Real
A 10 HP single-phase screw compressor is not a myth, but your choices are limited. As of 2025-2026, only a handful of manufacturers offer true 10 HP single-phase rotary screw compressors.
| Brand | Model Type | Availability | Notes |
|---|---|---|---|
| Eaton | 10 HP VSD Single-Phase | Backorder | 45 CFM, variable speed, cabinet only |
| EMAX | 10 HP Fixed or VSD | In stock | 39-45 CFM, cabinet configuration |
| Industrial Gold | 10 HP Enclosed | Available | Optional integrated dryer |
| Quincy | QGS Series | No | Single-phase capped at 7.5 HP |
| Atlas Copco | G Series | No | Three-phase only at 10 HP |
| Kaeser | SM Series | No | Three-phase only at 10 HP |
If you need 10 HP and only have single-phase power, verify your panel capacity before ordering. A 10 HP single-phase unit draws 40 to 50 amps running and can spike above 100 amps at startup. You need a dedicated 60A to 70A Type D breaker and 4 AWG wire. Many residential and light commercial panels max out at 100A or 200A total service, leaving little room for other equipment.
Need a deep dive on a specific size? See our dedicated guides for 5 HP screw compressors and 10 HP screw compressors.
Why Three-Phase Compressors Start Easier and Last Longer
Starting Torque Comparison
A three-phase motor at 10 HP delivers 150% to 300% of full-load torque at startup. A single-phase motor delivers 50% to 150%. Higher starting torque means the compressor reaches operating speed faster. The motor spends less time in the high-current startup zone. Less heat. Less stress. Fewer breaker trips.
Heat and Efficiency Differences
Three-phase motors are approximately 30% more energy efficient than single-phase motors of equivalent horsepower. The load is distributed across three windings instead of one. Each winding runs cooler. Cooler windings mean longer insulation life and less risk of burnout.
Single-phase motors generate more vibration because the torque pulses twice per electrical cycle. Three-phase power produces continuous torque. Smoother rotation reduces bearing wear and extends motor life.
VSD Compatibility
Variable speed drives work best with three-phase motors. The VSD simply varies the frequency of the three-phase power to control speed. On single-phase units, VSDs need specialized firmware with active front-end rectification and DC bus stabilization. Without these features, harmonic distortion can overheat transformers and trip breakers. If you are considering a VSD compressor, three-phase is the more reliable platform. For more on this decision, read our VSD vs fixed speed screw compressor comparison.
When Single-Phase Is the Practical Choice
You Only Have Single-Phase Available
Most home garages and small standalone shops have single-phase power. Bringing three-phase to the building can cost 3,000 to 12,000 or more, depending on the distance from the utility transformer. If your shop runs intermittent duty and your largest tool demand fits within 5 HP to 7.5 HP, single-phase is the obvious choice.
Intermittent Use Under 3,000 Hours per Year
Single-phase motors handle start-stop cycling reasonably well when run times are moderate. If your compressor runs a few hours per day and shuts off overnight, the thermal stress on a single-phase motor is manageable. A 60-gallon or larger air receiver tank limits cycle frequency to 10 starts per hour or less, which protects the motor.
Tight Budget and Simple Installation
A single-phase 5 HP screw compressor plugs into a standard 230V outlet with a dedicated circuit. No phase converters. No utility negotiations. No trenching. Total installation cost: 200 to 800 depending on wire run length and electrician rates.
When Three-Phase Is Worth the Investment
Continuous Duty or High Hours
If your compressor runs two or three shifts per day, five or six days per week, a three-phase system pays for itself in motor longevity and energy savings. Three-phase motors under continuous duty typically last two to three times longer than single-phase equivalents.
Planning to Expand Beyond 10 HP
If your shop is growing and you may eventually need 15 HP or 20 HP, investing in three-phase service now prevents a second electrical upgrade later. No manufacturer offers 15 HP or larger in single-phase. Three-phase is the only path to higher capacity.
VSD Upgrade Path
If you want variable speed drive technology for energy savings, three-phase is the standard platform. VSD integration on three-phase is straightforward and reliable. VSD on single-phase requires purpose-built hardware and careful electrical planning.
What If You Have Single-Phase But Want Three-Phase?
Sometimes the compressor you want is only available in three-phase. Or the three-phase model is significantly cheaper or better featured. You have three options to bridge the gap.
| Option | How It Works | Cost | Best For | Limitations |
|---|---|---|---|---|
| Static Phase Converter | Uses capacitors to create a third phase during startup, then runs motor on two-thirds power | 150−400 | Light, intermittent use | Motor runs at reduced power; not suitable for continuous duty |
| Rotary Phase Converter | A dedicated three-phase generator spun by a single-phase motor creates true three-phase power | 800−2,500 | Serious home and small shop use | Adds noise and maintenance; sizing must match compressor HP |
| VFD Phase Converter | Variable frequency drive electronically synthesizes three-phase from single-phase input | 1,200−4,000+ | Best efficiency and control | Requires proper sizing; can generate electrical noise |
James’s Phase Converter Solution
James runs a woodworking shop in Denver with single-phase 240V power. He wanted a 7.5 HP three-phase Quincy QGS for its reputation and local parts availability. The utility quoted $6,200 to bring three-phase power to his building. Instead, James installed a $1,800 rotary phase converter sized for 10 HP. It draws 45 amps from his single-phase panel and produces clean 230V three-phase for the compressor. Three years later, the converter has required only one capacitor replacement. James says the total cost was one-third of the utility upgrade, and he can add the other three-phase tools later.
Installation Cost Reality Check
Single-Phase Installation: 200 to 800
A single-phase compressor installation typically requires a dedicated circuit from your panel to the compressor location. For a 5 HP unit on a 30A breaker with a 20-foot wire run, expect 200 to 400 in materials and labor. A 10 HP single-phase unit with a 60A breaker and heavier gauge wire may run 500 to 800.
Three-Phase Service Upgrade: 3,000 to 12,000+
If your building does not have three-phase power, the cost to bring it in varies dramatically. Key factors include:
- Distance from the utility transformer to your building
- Whether trenching is required
- Your local utility’s connection fees
- Panel and breaker upgrades inside your shop
In urban industrial parks, three-phase may already be available at the meter for a minimal connection fee. In rural or residential areas, the cost can exceed $15,000.
When the Upgrade Pays for Itself
If you run a compressor 4,000 or more hours per year, the energy savings from a three-phase motor can reach 300 to 600 annually versus a single-phase motor. Over a 10-year motor life, that is 3,000 to 6,000 in electricity savings. Combine that with longer motor life and fewer repairs, and the three-phase upgrade can pay for itself in high-use environments.

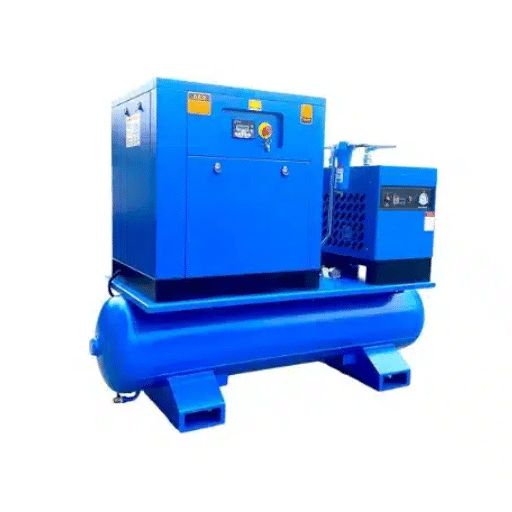

Voltage Drop: The Hidden Killer of Single-Phase Motors
Why Voltage Drop Matters More on Single-Phase
Single-phase motors are highly sensitive to voltage fluctuations. If the supply voltage drops below approximately 200V during startup, the motor cannot generate enough torque to reach operating speed. It sits in a high-current stall state. Windings overheat. Thermal protection may trip. If the protection fails, the motor burns out.
Voltage drop increases with wire run length and decreases with wire gauge. A 10 HP single-phase compressor 100 feet from the panel on undersized wire can see a 15V to 25V drop during startup. That is enough to cause failure.
How to Calculate Voltage Drop for Your Run
For a quick estimate, use this rule of thumb: for every 100 feet of wire run at 230V single-phase, upsize one gauge from the minimum. If the table calls for 8 AWG for a 5 HP unit and your run is 80 feet, 8 AWG is fine. If your run is 150 feet, use 6 AWG instead. For 10 HP single-phase with long runs, consider 2 AWG or larger.
Always have a licensed electrician verify your specific installation. They will calculate the exact voltage drop based on wire type, conduit fill, and ambient temperature.
Frequently Asked Questions
How do I know if I have single-phase or three-phase power?
Check your main electrical panel label for voltage ratings like “120/240V” (single-phase) or “120/208V” (three-phase). Count the poles on your main breaker: two poles means single-phase, three poles means three-phase. When in doubt, call your utility company.
What breaker size do I need for a 10 HP single-phase compressor?
You need a 60A to 70A Type D breaker. Type D is critical because standard breakers will nuisance-trip on the 100+ amp inrush current at startup. The wire must be 4 AWG copper minimum, and the wire run should be kept short or upsized to prevent voltage drop.
How much does it cost to install three-phase power?
If a three-phase system is not already available at your building, expect 3,000 to 12,000 or more. The cost depends on distance from the utility transformer, trenching requirements, and local utility fees. In some rural areas, costs can exceed $15,000.
Can I use a phase converter for a three-phase compressor?
Yes. Static converters cost 150 to 400 but limit motor power to about two-thirds of the rating. Rotary converters cost 800 to 2,500 and deliver full power. VFD converters cost 1,200 to 4,000+ and offer the best efficiency and speed control. Match the converter HP rating to your compressor.
Why does my single-phase compressor trip the breaker on startup?
The most common cause is inrush current. Single-phase compressor motors draw 2x to 3x their running amps for a fraction of a second at startup. A standard breaker sees that spike and trips. Switching to a Type D breaker, which tolerates brief inrush, usually solves the problem. Voltage drop from a long wire run can also cause extended high current draw.
Conclusion: Check Your Panel Before You Buy
The single phase vs three phase air compressor decision starts with one simple action. Open your electrical panel and check what power type you have. Do not assume. Do not guess. The cost of getting this wrong ranges from a frustrating return shipment to an $8,000 utility upgrade you did not budget for.
If you have single-phase power and need 5 HP, you are in good shape. Options are plentiful and installation is straightforward. At 7.5 HP, single-phase is still viable but requires a robust electrical service. At 10 HP, single-phase exists but only from select manufacturers, and the electrical requirements are substantial.
If you have three-phase power, use it. Three-phase compressors start easier, run cooler, cost less to operate, and integrate cleanly with VSD technology. The upfront equipment cost may be slightly higher, but the long-term savings in energy and maintenance typically outweigh the difference. And if you have single-phase but want a three-phase compressor, a rotary phase converter is often the most cost-effective bridge. It avoids the utility upgrade while giving you access to a wider range of equipment.
Shandong Loyal Machinery manufactures both single-phase and three-phase rotary screw compressors in 5-10 HP configurations for global export. We customize voltage, motor specifications, and control systems to match regional power standards and your specific shop requirements. If you are unsure which power type you have or which compressor fits your electrical service, contact our team for a specification review before you buy.
