Air End Rebuild vs Replacement: When to Rebuild Your Compressor

Introduction to Air End Compressors

Rotary screw compressors are one of the most efficient compressors, which use a single or many air ends to compress air at the desired pressure level, depending on the needs of various industries. These consist of the basic mechanisms of two meshed rotors with a surrounding case. The rotors intensely rotate the intern and the air, leading to their exhaustion. They are appreciated for their high efficiency, extra-long life, and associated reliability for continuous operation, which makes them exceedingly significant in industries such as manufacturing and construction, among many others, where compressed air is required for continual application. Introduction of regular servicing and dismantling of devices is key if every device component is to last long and serve its intended purpose without any hindrance.

What Is a Compressor Main Unit Overhaul?

A total air end rebuild is a major maintenance activity aimed at reinstating the compressor into perfect working order. It implies dismantling major components and cleaning the parts, as well as replacing worn or damaged components such as bearings, seals, and filters. ROMs are calibrated, including but not limited to the compression ratios, and alignment is demonstrated. This procedure is particularly essential for the efficiency of performance, elimination of catastrophes, and unexpected stoppages within a given period.

Detailed Explanation of the Rebuild Process

The air end rebuild process includes reducing machines to their basic unit parts, so as to check for wear and tear or any damage or malfunctions, and put them in good working order. To begin with, the machine is completely disassembled in a manner that enables the rotors, stators, seals, bearings, and any other internal components to be taken out. Once taken apart, the parts are heavily scrubbed with ultrasonic, chemical bath, or mechanical centrifugal processes, which remove all dirt that might lower their operative capacity. In the next step, inspection of the components is done by taking, for instance, measurements of specific tolerances with the help of calipers and bore gauges and checking for any faults by using, for example, spectrometers.

Worked elements that become unserviceable are serviced, particularly consumables like seals and bearings, and in some cases, major components can be fabricated or replaced. Where necessary, high-precision machinery is used to correct or manufacture components to enable their original functionality. Unlike the previously mentioned repair or adjustment wear and tear, the essential parameters, such as clearance, alignment, and balance, will have to be adjusted whenever an air end rebuild is done. Involves dynamic balancing and alignment of the equipment for smoother operations.

Reassembly consists of performing proper torque for all fasteners and ensuring that mating surfaces and seals are aligned properly so as not to promote the creation of leaks and vibrations. Lastly, the rebuilt system is put under simulation test conditions in order to check its performance. Such tests include pressure tests, thermal measurements, and vibration tests to ensure that the machinery complies with the rigid anticipation of performance and safety. Basic strategy is important not only for practical and normal functioning, but equally aims at enhancing the length of the machine’s life and reducing the amount of maintenance or air end rebuild that will be required.

Common Components Replaced During a Rebuild

All replacements are assessed keeping in mind the operating requirements, consumption or operation patterns, usage or wear and tear of the machines, and installations that ensure that proper air end rebuild instructions are taken into consideration.

Benefits of Rebuilding Over Replacing

Compared with replacing equipment, the refurbishment of machines has quite a few benefits. Firstly, it helps to save costs significantly, cutting expenses by 40–60% within the scope of buying new machinery. This strategy allows one to optimize the monetary expenditure while delivering the same or better output from the machine. Secondly, reconstructing does not cause too much operational delay as it consumes less time to deliver than ordering and installing a new one; thus, operations can commence more quickly. Thirdly, rebuilding ensures that materials are reused, hence cutting back on waste and the carbon footprint of production and old equipment. What’s more, some new solutions will appear in the existing rebuilding of the equipment. For instance, a replacement of old sensors and control units might take place. This way, the new equipment will meet the contemporary requirements of operation. In general, this kind of enhanced rebuilding increases machinery life, promotes operational betterment, and is economical and eco-friendly as well.

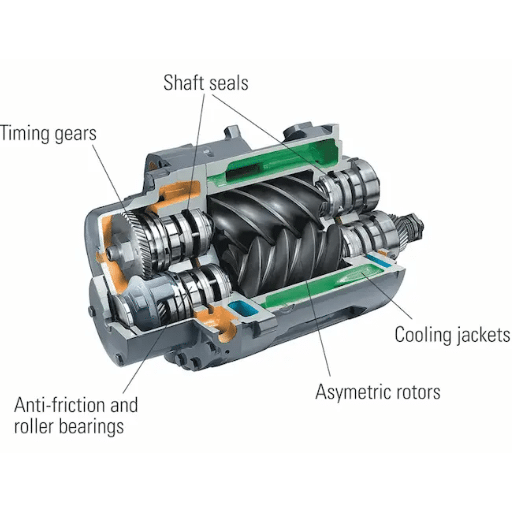

Signs Your Air Compressor Needs a Major Overhaul

Staying on top of these concerns ensures optimal functionality and enhances the avoidance of any corrective maintenance on such systems as air compressors with wear and tear.

Common Indicators of Wear and Tear

Performance Metrics to Monitor

Potential Consequences of Ignoring Maintenance

People often overlook the recommended maintenance practices of their air compressors, and this can be a very costly affair. The most significant among these things is the decline in performance as they become clogged with dirt and wear and tear because of a lack of checking of the filters. Eventually, this lack of attention can cause the equipment to overheat, damaging vital parts of the machine, such as the motor and the pump. Moreover, equipment that is not serviced often has a high probability of malfunctioning unexpectedly, and this results in long downtimes, costly wait periods, and expensive repairs, too. In addition, it should be known that a lack of maintenance accelerates the chances of having air leaks, thus leading to an increase in the cost of energy and affecting production levels. Finally, if no air compressor service is performed, then the air compressors will have a very short life; therefore, this requires buying newer compressors before the older ones have outlived themselves. Or, since the new compressors usually experience longer use, one would have to consider selling the old compressor or at least carrying out an air end rebuild.

Cost Comparison: Rebuilding vs. Replacement

Most often, air compressors are revitalized by repairing or replacing active parts like the motor, valves, or seals without ripping apart the entire system down to the chassis. This technique is often less expensive, at least initially, than a complete replacement, especially if the system is not damaged. Rebuilding helps to avoid the higher cost of new compressors and improves the useful life of the compressor. However, after a comprehensive analysis of the costs, it is possible that rebuilt compressors may not meet the expectations for energy efficiency, reliability, and innovations of a brand-new compressor. Simultaneously, an air end rebuild not only costs less than a new compressor, but it may prolong a functioning compressor for its useful span. However, after rebuilding, there is usually not much improvement in long-run efficiency because the restored system does not have all the advantages of a new one.

On the contrary, replacement refers to obtaining a brand-new air compressor, which might involve a higher upfront cost. The advantages of replacement are longer operation with reduced energy costs and maintenance costs, as well as improved output, as newer models come with advanced designs and increased efficiency. When old compressors are breaking down more and more often or are nearly reaching the end of their useful life, they should be replaced as more economical in the long run. Decision-making processes must take into account the state of the existing compressor as well as possible repair costs and the benefits brought by newer machines.

Breakdown of Rebuild Costs

The factors that must be taken into account when assessing the cost incurred to rebuild compressors should be the following:

Among the positives of compressor boring, if any, will certainly be the lower renovation costs than replacement; however, it will also be prudent to consider whether the rebuilt compressor can meet the operational requirements in terms of performance, efficiency, and how long it lasts. Take, for instance, the case where some of the components cannot simply be reused, e.g., even if the costs are nearly 60 to 70% than the cost of a new compressor, it would still make more sense to just purchase and install a new one.

Evaluation of Costs Associated with Full Replacement

Multiple aspects come along with assessing the expenses related to compressor replacement, which must be taken into consideration in detail. There is not only capital expense involved in the purchase of a compressor, but also costs in significant downtime during installation, operational training, racks necessary to support it, adjustment efforts, and system adjustments, for example. More recent models use newer technologies, which enhance both energy efficiency as well as executional readiness of the applications, such that ultimate cost unrelated to a machine reduction is achieved and may be pursued. The gains in efficiency, however, have to be kept in perspective with the capital put in.

It has been found, however, that it is often logical to replace the whole unit if the cost of repairing the system is 50% or higher of its cost value, and especially if there is 70–80% of air end rebuild since the existing compressor has almost served its life span. Another point is that modern compressors present longer warranty periods and suffer less depreciation, thus lowering the possible maintenance costs. The expected energy savings and benefits of performance must be factored into the investment decision-making process in order to assess the Total Cost of Ownership (TCO) against its possible extent over the period of the system usage. These aspects enabled the regions to make rational decisions for the present and the future.

Long-Term Financial Implications

When considering an upgrade of a compressor system in terms of its cost over time, specific important issues must be looked at. To begin with, the amount of initial expenditure has to be compared to the possibility of decreasing the level of energy use, which usually takes up 70–80% of the total cost of operating a compressor in its lifespan. Today’s compressors with advanced technology come with energy-efficient mechanisms, which will help reduce energy consumption costs over time. Secondly, the projected cost for maintenance and repair services also comes in. Reliable upgraded systems will have longer periods between services, advanced diagnostic capabilities, and therefore less downtime, and lower repair costs than the older systems. Finally, in order to promote efficient energy use or incentivize the use of cleaner technology, there may be strict energy saving requirements or tax benefits that fill in as additional costs of the system curve and favor the upgrade decision. All these elements have to be analyzed in order to build the deck towards the future viability of the costs against the benefits. This is so that the business remains sustainable into the future. Some of them could take the form of an air end rebuild.

Advantages of Rebuilding Your Air End Compressor

The objective of undertaking the air end rebuild process is to ensure high-performance efficiency alongside substantial savings. To begin with, it is far cheaper than replacing the whole compressor unit with a new one. Companies are able to rechannel their finances into other useful activities. Secondly, carrying out a rebuild enhances the workings of the compressor while restoring energy efficiency as well as any deterioration that may have resulted from wear. Additionally, this strategy decreases the rate of significant expenditure towards machinery by avoiding early or frequent replacement. This, plus rebuilding, further makes sure that the system meets the required standards in terms of quality and reliability perspective, thus ensuring that there are fewer downtimes and more productivity. Weighing such good aspects allows for conclusions concerning optimization and rational use of equity resources of the assets.

Reference Sources

Applications of frequency conversion technology in the control system of air-compressor units

Key Findings: This study explores the implementation of frequency conversion technology in reconstructing control systems for piston air-compressor units. It highlights significant electricity savings and improved operational efficiency over a year of application in a mining environment.

Flow field reconstruction of compressor blade cascade based on deep learning methods

Key Findings: This paper demonstrates the use of deep learning, specifically 1D-CNN and 2D-CNN models, for rapid and accurate reconstruction of compressor blade cascade flow fields, achieving errors of less than 1%.

Frequently Asked Questions (FAQs)

What is an air end rebuild, and what are the main indications for performing an air end rebuild?

Air end rebuild refers to the process of pulling apart a rotary screw compressor air end, examining the internal components, and replacing such core parts as rotors, bearings, seals, gaskets, and shafts, and regaining clearances for new builds as laid out by the factory standards. An air end should be rebuild when excessive wear and tear or failure results to degraded compression performance leading to increased energy consumption, abnormal noises or vibrations, oil leaks, before the air end becomes unsalvageable and leaks rotors or bearings in the course of unused overhaul inspection of the air end basing on expectation of them failing much later than the next scheduled inspection, thus preventing excessive downtimes and superior costs of repairing.

Do you suggest air end rebuild, replacement, or even a change of compressor?

Thinking of pros and cons, rebuilding to changing air compressor parts always has an advantage: it is constantly cheaper to be very specific and repair a worn-out airend or a broken repaired rotary air end than purchase the stated component fresh or discard the whole pump, notably the large industrial compressors. But buying replacements costs more than rebuilt units, quorum can be reached faster when rebuilds are done, and sometimes warranties are given; nonetheless, those who buy air compressor units may want to replace their air end, probably due to irreparability, and in some cases, to upgrade for energy savings.

Is it possible to perform an air end rebuild trying to help to stretch the service span of the compressor and reduce the costs of operations?

Certainly. When a correct rebuild is done, rotor clearance and tolerance are brought back, all worn bearings and seals are replaced, and lubrication and components of the inlet are improved to minimize leakage and friction. This enhances the compressor’s performance; the energy cost of poorly performing rotary screw compressors is possibly decreased because the compressors last longer. and the operating expenditures may be reduced to a minimum through the imposed constraints.

What are some estimates of costs associated with reconditioning a damaged airend as opposed to replacing the entire air end or compressor?

Repairing the cost in this respect is highly stimulated by the severity of effects such as the extent of bruising, how big or small the compactor size is and the required parts: on instance basics, the capsulation or rebuilding of some parts tend to replace something like a gasket, seals and additional parts like bearings, on the contrary, on whole complete airend rebuilding there is a need to replace the rotor and machine. In most cases, the cost of repairing is noticeably less than that of buying a new airend or compressor. However, this is not always so, because different compressor manufacturers such as Atlas Copco, Ingersoll Rand, and Sullair have different pricing practices. The cost of rebuilding is also adjusted to the use of original equipment manufactured parts or otherwise.

What is the expected time frame for an air end rebuild?

The amount of time repairing an air compressor takes usually varies. This depends on the extent of work that has to be done. When it comes to simply reconditioning the air ends, that might take a few days, while overall restoration of the compressor unit might extend to weeks. However, it is better to be prepared for the worst-case scenario to save on manpower, equipment, and, most importantly, time. This is achieved by ensuring that there is maintenance being carried out at the required intervals, holding replacement parts where necessary, carrying out repairs using skilled and knowledgeable personnel who are familiar with the repair work of rotary screw pumps, and fixing the compressors during downtime. The time consumption can also be reduced through processes such as Quick-turnaround rebuilds and Replacement air ends.

How to know when an air end needs to be rebuilt instead of repaired?

Some of the factors which suggest a need for rebuilding the air end are prolonged low compression, high energy uptake, oil content, abnormal sound or rigs, finding metallic flakes in the lubricant, rotor damage, or simply worn out bearings and seals. Additionally, if upon tearing down the given air end, the rotors are very much worn beyond specification, there are scores or even an impaired suction, which means rebuilding would be more favorable than replacing and repairing the given components.
