Screw Compressor Air Oil Separator: Replacement Guide
Dave, a maintenance supervisor at a packaging plant, replaced the screw compressor air/oil separator on his 75 HP machine three times in eight months. Each new element came out looking almost clean, and each time oil carryover returned within weeks. The real fault took him ten minutes to find: a blocked scavenge orifice barely a millimeter across.
If your plant treats the separator as a scheduled consumable and nothing more, that story might sound familiar. Replacing it on time feels like responsible maintenance. In practice, the element is only one part of a separation system, and plenty of “failed” separators weren’t the problem at all.
This guide explains what the air/oil separator actually does, how separation happens in two distinct stages, which differential pressure readings justify a replacement, and how to change the element safely. You’ll also learn how to read a removed element for diagnostic clues, so you stop replacing parts that are still doing their job.
If you already know the element you need and just want it specified correctly, send our team your compressor model and running hours, and we’ll confirm the right part.
What an Air Oil Separator Does (and What It Isn’t)
In an oil-injected screw compressor, oil is deliberately mixed with the air inside the airend. The oil seals the rotor clearances, lubricates the bearings, absorbs compression heat, and dampens noise. All four jobs depend on the oil being in the compression chamber. That means it has to come back out before the air leaves the machine.
Removing it is the separator’s job. It takes a stream of air carrying oil in droplet and mist form and returns that air with only a few parts per million of oil left.
A healthy separation system typically leaves around 2 to 5 ppm of oil in the air, and Kaishan cites roughly 3 ppm.
If you need a defensible air quality target, the relevant standard is ISO 8573-1, which classifies total oil content, including vapor. Class 3 allows under 1 mg/m³, Class 2 under 0.1 mg/m³, and Class 1 under 0.01 mg/m³.
Reaching Class 1 or better takes coalescing filtration plus activated carbon or catalytic removal. A separator alone can’t capture oil vapor.
Here’s the distinction that trips people up: the air/oil separator isn’t the oil filter. The oil filter cleans dirt out of the lubricant circulating through the lubrication circuit. The separator pulls lubricant out of the air stream heading downstream to your dryers, filters, and tools. They’re different parts, on different circuits, with different failure symptoms.
| Component | Removes | From which stream | Typical failure symptom |
|---|---|---|---|
| Air/oil separator element | Oil droplets and mist | Compressed air, downstream | Oil carryover, high ΔP |
| Oil filter | Dirt, wear particles, sludge | Lubricant, lubrication circuit | Dirty oil, wear, short oil life |
| Air filter | Dust and airborne debris | Ambient intake air | Low capacity, dust ingress |
Mixing these up is common, and it’s expensive. Order an oil filter when you need a separator, and the carryover never goes away. Meanwhile, the new oil filter fouls quickly because the oil system is still full of contamination.
How a Screw Compressor Air/Oil Separator Works: Two Stages
Separation doesn’t happen in the element alone. It happens in two stages, and the first stage does most of the work.
Stage 1: Bulk Separation in the Separator Tank
The air and oil mixture leaves the air end as a dense foam and enters the separator tank, also called the receiver or sump. Three things happen there in quick succession.
First, the mixture strikes the vessel wall and loses velocity, so large oil droplets coalesce and fall out of suspension. Gravity then pulls those droplets down to the oil pool at the bottom of the tank. Finally, a cyclonic or centrifugal path, depending on tank design, throws remaining droplets outward against the walls where they collect and drain.
By the time the air reaches the element, the tank has already removed the bulk of the oil. The tank is correctly described as the primary separator, and it’s a pressure vessel, not a filter.
Stage 2: Coalescing in the Element
The remaining oil travels as a fine mist and aerosol, and gravity won’t touch it. This is where the coalescing element takes over.
Inside a modern element, the media is built in graded layers of borosilicate micro-glass fiber. Oil mist passes through the fiber matrix, and micron-scale droplets collide, merge, and grow into larger droplets. A drainage layer then releases those droplets so they fall to the bottom of the element instead of being re-entrained.
An outer scrim layer, often a polyester spunbonded nonwoven, captures larger particles above roughly 10 microns before they reach the fine glass layers. A spiral-welded perforated metal core provides the structural support that resists collapse and rupture under fluctuating differential pressure.
The design trade-off matters when you buy. Media that’s too heavy raises separation efficiency but increases pressure drop and energy cost. Media that’s too thin reduces separation and pushes oil downstream. Reputable element makers balance those two, which is one reason element quality varies so much.
Why One Stage Can’t Do Both Jobs
Bulk droplets are large and heavy, so they separate by physics alone. Aerosols are small and light, so they need media to capture them. Try to handle both in one stage, and you get either a saturation-prone tank or an element that blinds in weeks.
This distinction explains most separator misdiagnosis. When oil carryover appears, operators replace the element. But if the tank is overfilling, if the scavenge line is blocked, or if the oil is vaporizing, the new element won’t help.
For a deeper look at the oil circulation path that feeds this system, see our guide to how an oil-injected screw compressor works.
Need more information? Please read our article on oil carryover in rotary screw compressors.
The Minimum Pressure Valve and the Scavenge Line
Two small components decide whether separation works, and both get overlooked during service.
What the Minimum Pressure Valve Does for Separation
The minimum pressure valve sits at the outlet of the separator tank. It’s a spring-loaded back-pressure valve combined with a discharge check valve, and it holds a minimum pressure inside the tank before allowing air to flow downstream.
That minimum pressure isn’t arbitrary. On many oil-flooded machines, there’s no separate oil pump, so separator pressure is what pushes oil through the filter, cooler, and back to the air end.
Drop the tank pressure too low, and oil injection weakens. Separation efficiency falls, and oil reaches the air stream. The valve typically opens somewhere around 4 to 5.5 bar on many models. The setting varies by manufacturer, so check your own manual.
The same valve acts as a check valve. During unload or shutdown, it stops receiver air from flowing back into the separator tank.
The Scavenge Line: Small Orifice, Big Consequences
Oil collects at the bottom of the element and has to be returned to the air end. The scavenge line, sometimes called the oil return line, does that job through a small orifice that’s typically somewhere between 0.8 and 1.5 mm across.
That orifice is the single most common cause of oil carryover. A blocked or partially blocked scavenge line means collected oil has nowhere to go, so it re-enters the airstream and travels downstream. Manufacturers consistently name clogged scavenge lines and orifices as the top cause of carryover, ahead of element saturation.
The return line also has to reach the bottom of the element when refitted. If it sits too high, oil pools in the element housing and finds its way into the air.
When to Replace a Screw Compressor Air/Oil Separator
You’ve got two triggers to work with: differential pressure and physical symptoms. Use both.
Reading Separator Differential Pressure
Differential pressure, usually written ΔP, measures the resistance the element adds to the air path. You’ll find it on the controller or a gauge across the separator.
A clean element shows a low value. As the media blinds with oil and contaminants, ΔP climbs. Simple as that.
Published thresholds vary more than you might expect, because element type and OEM alarm settings differ.
| Condition | Commonly cited ΔP | What it means |
|---|---|---|
| New element | 0.1 to 0.2 bar (1.5 to 3 psi) | Healthy baseline |
| Elevated | 0.7 bar (about 10 psi) | Sullair literature uses this as the alarm point |
| Service alert | 0.8 to 1.0 bar (12 to 15 psi) | Most sources cluster here for replacement |
| Severe | 1.0 to 1.5 bar (15 to 22 psi) | Blockage, replace immediately |
Some manufacturers publish different figures again. Ingersoll Rand references a front-to-back difference around 0.12 MPa, and Kaishan advises replacement above 10 PSIG. These aren’t contradictions so much as different element designs and different alarm philosophies.
The practical rule: treat roughly 0.8 to 1.0 bar as your working replacement point, and treat your machine’s own manual as the authority. Never run an element to collapse just to get full value from it.
What a Blocked Separator Costs You in Energy
A separator left in service too long doesn’t just risk oil carryover. It quietly raises your power bill every hour it runs.
Every extra bar of differential pressure costs roughly 6 to 7 percent more energy to produce the same airflow. Both ALUP and BOGE document that relationship in their technical literature. The penalty is permanent and invisible. The compressor still makes air, the pressure gauge still reads normal, and nothing looks wrong until you compare the energy figures.
The math gets uncomfortable fast. A 75 kW machine running two shifts pays real money for every bar of avoidable differential pressure, and that extra energy buys you nothing. You’re paying more to get the same compressed air, and you’re shortening the separator element’s life by running it hot at the same time.
| Separator differential pressure | Extra energy use | Wasted power on a 75 kW machine |
|---|---|---|
| 0.2 bar (healthy new element) | Baseline | None |
| 0.5 bar | About 3% | Roughly 2.3 kW |
| 0.8 bar (replace now) | About 5% | Roughly 3.8 kW |
| 1.0 bar (overdue) | 6 to 7% | Roughly 4.5 to 5 kW |
Put that in annual terms. Four kilowatts of wasted power over 4,000 running hours is 16,000 kWh a year. At a typical industrial rate of 0.10 to 0.15 US dollars per kWh, that’s 1,600 to 2,400 dollars spent to produce air you were already making. A separator element costs a fraction of that.
That’s why replacing at 0.8 to 1.0 bar rather than waiting for collapse is a cost decision, not just a maintenance one.
When ΔP Lies
Here’s the part most guides skip. An element can start passing oil before differential pressure rises meaningfully. Some elements lose separation efficiency gradually while the gauge still reads acceptable. That’s why oil carryover shows up in air lines on machines that look healthy on the controller.
Watch the full symptom set, not just the number:
- Oil carryover, visible as an oil film in lines, oily residue at tools, or oil in dryers and filters
- Rising lubricant consumption with no external leak
- Discharge or oil temperature creeping upward
- Compressor load current rising
- Controller alarms for separator, differential pressure, or high temperature
Ibrahim, a maintenance engineer at a textile mill in a hot, humid region, learned this the expensive way. His separators performed well from October through April, then failed every summer. Differential pressure was never the first clue. His discharge temperature was, and it kept crossing the point where oil starts to vaporize and pass straight through the media.
Baseline Intervals and Derating
If you prefer calendar or hour-based planning, these are the intervals most commonly published.
| Element type | Baseline interval |
|---|---|
| Spin-on element | About 4,000 hours |
| Standard drop-in element | About 8,000 hours, or annually |
| Severe conditions | Down toward 3,000 hours |
Severe conditions include high ambient temperature, high humidity, dusty or oily intake air, degraded or wrong lubricant, and extended oil change intervals. Sources quote element life anywhere from 500 to 8,000 hours, because those variables change the answer dramatically.
Notice how manufacturers treat the element differently in their own schedules. Some bring the separator into a 2,000-hour preventive maintenance scope for inspection rather than specifying a hard replacement hour. Others publish a firm interval. Both approaches work when the machine is monitored.
Use the interval as a planning baseline, then derate it for your conditions. Condition-based replacement, driven by ΔP and symptoms, beats any single hour count.
If you want the full calendar across oil, filters, and separators, our air compressor maintenance schedule covers the wider plan, and the rotary screw compressor oil guide explains how oil condition drives separator life.
Diagnosing Failure Before You Buy a New Element
Before you order a replacement, confirm the separator is actually the problem. These are the failures that masquerade as separator failure.
| Suspected cause | How to check |
|---|---|
| Blocked scavenge line or orifice | Remove and clear the line; confirm the orifice is open |
| Separator tank overfilled | Check oil level on the sight glass against the maximum mark |
| Wrong oil viscosity or chemistry | Confirm the lubricant matches the specification |
| High discharge temperature | Compare against the OEM normal range |
| Minimum pressure valve fault | Verify the valve holds tank pressure |
| Foaming oil | Inspect for aeration and check oil condition |
The Old Element Is Data
The element you remove tells you what happened. Read it before you discard it.
- Collapsed or deformed suggests prolonged high differential pressure or defective media construction. Ask why ΔP monitoring didn’t trigger a replacement.
- Ruptured lets oil flow straight through, and it can shed glass fiber into the oil system. That shortens oil filter life and causes abnormal wear.
- Heavily sludged points to oil degradation or contamination rather than element failure.
- Clean but carryover persists points away from the element entirely. Check the scavenge line, oil level, and temperature.
- Oil-saturated but undamaged with normal ΔP points to overfill, foaming, or a scavenge restriction.
The Temperature Ceiling
Above roughly 105 degrees Celsius, oil vaporizes. Mechanical coalescing media can’t capture vapor because there’s nothing to coalesce. The vapor travels downstream and condenses in cooler parts of the system. There it shows up as oil contamination.
So if you’re replacing elements to fix carryover on a machine that runs hot, you’re treating a symptom. Fix the temperature first, or the next element will fail the same way. Our guide to compressor overheating covers the usual causes, from blocked coolers to low oil level.
Choosing an Element: OEM vs Aftermarket
Element prices span a wide band, from roughly 16 US dollars for small generic parts to over 1,000 dollars for large OEM elements. A separator element replacement is a recurring cost, so it’s worth knowing exactly what you’re buying. Manufacturers warn against cheap copies, and there’s a genuine technical reason behind the warning.
Grounding Continuity: The Safety-Critical Difference
The most serious risk with a badly matched element is loss of electrical grounding. High-velocity air and oil mist moving through the separator can generate static electricity. If that charge can’t reach ground, it discharges as a spark. Inside a vessel full of oil mist, that’s a fire.
OEM separators are designed to seat against grounding tabs and clips that carry charge to the grounded tank. Some designs carry grounding continuity through the gasket itself, which is why manufacturer instructions warn against removing staples or conductive pins from a gasket. Others add copper elements to improve conductivity.
An element built to broad, non-specific dimensions may not maintain that continuity. That’s the difference between a part that separates oil and a part that creates a fire risk in a pressure vessel.
What to Verify in an Equivalent
High-quality aftermarket elements can perform comparably to OEM parts, and for export buyers they’re often the only practical option. Verify these points before you commit:
- Dimensional match with the original element, including height and sealing flange
- Media collapse or burst rating appropriate to your system pressure
- Gasket included, with grounding hardware intact
- Micron rating and separation efficiency stated by the supplier
- Supplier confirmation that grounding continuity is maintained
Carlos, a distributor sourcing replacement parts for imported compressors in his region, now asks every supplier one question before ordering: how does this element ground to the tank? Suppliers who can’t answer it don’t get the order. That single question has saved him at least one service incident he knows about, and probably others he doesn’t.
For OEM-specification filter, separator, and lubricant kits matched to your model, send us your compressor details, and we’ll confirm the correct part numbers for your machine.

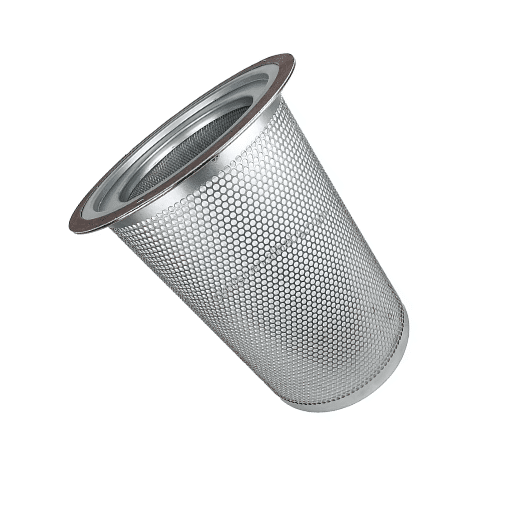

How to Replace the Separator Element Safely
Most reported incidents during separator replacement happen before the swap begins, during depressurisation. Follow this sequence.
Before You Start
- Apply lockout/tagout to the electrical supply and confirm the machine can’t be energised. Attempt a start and verify the panel stays dead.
- Isolate the compressor from the air system and close the discharge valve.
- Wear eye protection and oil-resistant gloves, and have spill containment ready.
- Allow hot components to cool if the machine has just run.
Verify Zero Pressure
The separator tank holds blow-down and residual pressure. Never assume it’s depressurised.
- Open the drain valve slowly.
- Confirm the system gauge reads zero.
- Independently verify by loosening the sump pressure monitoring line slightly, then tap the fitting to confirm no pressure remains.
Open drains slowly. If pressure is still present, you want to find that out before the sump is opened.
Drain and Remove the Old Element
- Drain the oil completely, ideally warm but not hot, into a suitable container of 15 to 20 liters or more. Inspect the used oil for metal particles or heavy contamination.
- Disconnect the piping and control lines at the top cover, including the minimum pressure valve line and the scavenge line.
- Remove the cover bolts, noting the cover orientation, and lift the lid without letting debris fall into the tank.
- Remove the old element with gloves. It’ll be oil-soaked and may still be hot.
Clean, Refit, and Torque the Cover
- Clean the vessel interior with a lint-free cloth and inspect the walls for corrosion. Confirm the scavenge orifice is clear.
- Install the new element with correct orientation, seated fully. Don’t remove any sealing gasket or grounding pin.
- Fit a new cover gasket or O-ring, lightly lubricated with clean compressor oil.
- Refit the cover and torque the bolts in a criss-cross or star pattern.
Torque values vary by bolt size and machine. Commonly cited values include roughly 49 Nm (36 ft-lb) for M10 grade 8.8, 50 Nm for M12, 75 Nm (55 ft-lb) for M12 grade 8.8, and 90 Nm for M16. Treat these as examples only and use your OEM manual. Uneven tightening warps the cover, which produces leaks and a false high differential pressure on a brand-new element.
Refill, Restart, and Verify
- Refill with the correct lubricant to the maximum sight glass mark. Top up only with the same fluid already in the machine.
- Remove lockout/tagout and restore power.
- Open the air valve slowly and check for leaks around the cover and fittings.
- Start the compressor and watch oil and air pressure, listening for unusual noise, for the first 5 to 10 minutes.
- After about 10 minutes of running, stop briefly and recheck the oil level.
A correctly fitted element typically shows a differential pressure below 0.1 to 0.2 bar, clean discharge air, stable temperatures, and no active alarms. If differential pressure is high right after a change, check the scavenge line seating, the cover torque, and the gasket.
Because separator replacement is usually the right moment to refresh the oil and oil filter, plan the work as a single service event rather than three separate ones.
Frequently Asked Questions
How often should an air/oil separator be replaced?
Most manufacturers publish around 4,000 hours for spin-on elements and 8,000 hours or annually for standard drop-in elements. Severe heat, humidity, dust, or degraded oil cut that life toward 3,000 hours. Condition-based replacement using differential pressure and symptoms beats hours alone.
What does differential pressure mean the separator is bad?
Most published figures cluster around 0.8 to 1.0 bar (12 to 15 psi), with some manufacturers alarming earlier at 0.7 bar and others specifying 10 PSIG. If you’re unsure when to replace an air oil separator, treat 0.8 to 1.0 bar as the common trigger. Your machine’s manual takes priority. Replace at your specified limit rather than running the element to collapse.
If you’re ordering an oil separator, compressor model and running hours are the two details a supplier needs to match the part.
Can I replace the separator element myself?
Yes, with the right safety discipline. Lock out the electrical supply, isolate the air system, and physically verify zero pressure in the separator tank before opening anything. The tank holds residual pressure, and most incidents happen during depressurisation rather than during the swap.
Is an air/oil separator the same as an oil filter?
No. The separator removes oil from the compressed air stream downstream of the airend. The oil filter removes dirt and wear particles from the lubricant circulating in the lubrication circuit. Different parts, different circuits, different symptoms.
Can I use an aftermarket separator element?
A high-quality equivalent can perform comparably when it matches the original dimensions, collapse rating, micron rating, and grounding continuity. Verify those points with the supplier. Grounding is the safety-critical one, because an ungrounded element can allow static discharge inside an oil-mist vessel.
What happens if I never replace the separator?
Differential pressure climbs, which raises power consumption permanently. In time, the element can deform or rupture, releasing oil into your air system and shedding media into the lubricant. A large separator failure can put far more than the element price at risk, and manufacturer literature has cited collateral damage approaching 40 percent of compressor value.
Conclusion
The air/oil separator is a consumable, but it fails for reasons you can inspect and measure.
- Separation happens in two stages. The tank removes the bulk of the oil, and the element removes the last few parts per million.
- Differential pressure around 0.8 to 1.0 bar is the common replacement point, but your manual is the authority.
- Differential pressure alone isn’t enough. Carryover, rising oil consumption, and temperature changes matter just as much.
- Blocked scavenge lines and orifices cause more carryover than saturated elements do. Check them first.
- Grounding continuity is the safety-critical difference between a good element and a dangerous one.
- Verify zero pressure before you open the tank. Most incidents happen at that step, not during the swap.
If you’ve ruled out the scavenge line, oil level, and temperature, and the carryover continues, the element is probably done. Send us your compressor model and running hours, and we’ll confirm the correct separator, oil filter, and lubricant specification for your machine.
For the full picture of how oil and the oil system interact across the machine, read our complete guide to oil-injected rotary screw compressors.
Running an oil-injected screw compressor and unsure when the separator is due? Contact our team for element and service-kit specifications matched to your model.
