VSD vs Fixed Speed Compressor: Which Saves More Energy for Your Factory?
Vietnamese textiles manufacturers included the installation of a Variable Speed Drive (VSD) instead of a 50HP fixed-speed compressor. The VSD incurred an additional cost of the premium of 6,500; this cost was calculated with the use of 408,400 as the overriding net air demand. The cost premium is amortized within 9 months, returning the generation of more than $42,000 over time.
In a plant resort of three hundred kilometers, the plant uses a 75 HP compressor which runs at 95% of its load, 24 hours, 350 days a year. The consultant suggested that they install a VSD in place of the existing fixed-speed compressor. The additional cost was 12,000. However, after installing the VSD, there was barely an appreciable reduction in power bills. This is so because the losses at the compressors’ inverters are so large that they obliterate any such savings under normal operation, which will never go outside the ambient pressure that encloses them, in particular, 12,000 or more.
If one is considering VSD vs. constant speed Decisions for its facility use, the answer depends on the case specifics. It is not possible to say conclusively which one is more advantageous because the choice would be determined by the prevailing demand structure, activity intensity, and operational goals. In this guide, the two variants are discussed along with the energy consumption statistics, payback period calculation, and the method of choice suitable to an operational build schedule of a specific factory.
Need the complete framework for choosing a compressor? Our guide on how to choose an air compressor for your factory covers demand audit, system design, and total cost of ownership.
How Fixed Speed and VSD Compressors Work
Fixed Speed Compressor: Full Speed or Nothing
There comes a rotary compressor in action with a predefined power-to-speed ratio. The compressor capacity in determining the load condition is according to the same as made by the load on the compressor. When the load is decreased, firstly, the compressor unloads itself. It means that the electric motor will continue to rotate however the intake valve will close, thus the compressor will not produce air.
However, this poses a problem. An underloaded conventional belt-driven reciprocating compressor usually requires about 25-35% of its normally operable capacity while operable. A substantial amount is utilized to supply power for a motor that is not engaged in doing any meaningful work. In numerous industries, including factories, it is common for the demand for air to exhibit peaks and troughs as those seen in the mountain ranges. The compressor selected has been designed to cater for the average peak demand, yet it has to operate inefficiently under 60-90% of such periods.
VSD Compressor: Matching Speed to Demand in Real Time
A Variable Speed Drive (VSD) compressor utilizes an inverter to keep changing the speed of the motor. When demand is high, the motor runs at full speed. When demand is reduced, the motor decreases its speed and power consumption scales with the air delivered. Without any need to reduce the speed, there is no energy loss in the operation of an idle and rotating motor.
Let’s make the distinction simple. At 70% requirement, the VSD driven compressor is designed to operate at 70% speed and consume 70% of its rated power. A fixed-speed machine at 70% demand is designed to run at full speed for 100 % of the time, unload for approximately 30% of the time, and operate on roughly 85% of the rated power on an average basis.
The Key Difference: Why Fixed Speed Wastes Energy at Part Load
Fixed-speed compressors are either/or alternating. They operate either on full load or do not load. They cannot function at intermediate values. VSD compressors are the precise opposite. They vary the output to suit the exact demand.
If your company has a constant and predictable pattern of orders, this difference will be immaterial. When the rate of orders changes, it will mean you will run millions worth of unused electricity.
Head-to-Head Comparison
| Factor | Fixed Speed | VSD |
|---|---|---|
| Motor speed | Constant (100%) | Variable (20-100%) |
| Unloaded power | 25-35% of full load | Near zero at low demand |
| Pressure band | 1.0-1.5 bar swing | ±0.1-0.3 bar |
| Energy savings vs fixed | Baseline | 20-35% (up to 50% with PM VSD) |
| Upfront cost | Lower | 15-40% premium |
| Starting current | 6-8x full load | Soft start, minimal spike |
| Full-load efficiency | Excellent | Slightly lower (2-3% inverter loss) |
| Part-load efficiency | Poor | Excellent |
| Best for | Constant demand above 85% | Variable demand below 80% |
| Pressure stability | Wide swings | Tight control |
| Mechanical wear | Higher (load/unload cycling) | Lower (soft start, fewer cycles) |
The Part-Load Problem: Where Fixed Speed Bleeds Money
Energy is even higher, especially when it comes to compressors where energy accounts for about 69-75% of the total lifecycle costs, compared to the purchase cost which only contributes to around 10-20% of the total life cycle cost. This is what make the part-load issue so costly.
With a fixed-speed compressor and 50% load, it is feasible to change the compressor offloading pattern resulting in unloading mode operation only 50% of the time. During these modes, the distribution of energy and power consumption can be said to stand at about 25-35 % and zero production of compressed air, respectively. Any variable speed drive compressor, at 50% load, runs as per the demand at half speed, requiring half the power. This energy difference is not small. It is extraordinary-wise the reason that makes energy so profound.
Looking for energy-saving options? Our guide on how to reduce air compressor energy costs covers VSD technology, leak detection, and system optimization strategies.
Why VSD Wins During Low-Demand Periods
The savings are not theoretical. They are measurable on your electricity bill.
| Average Load | Fixed-Speed Power Draw | VSD Power Draw | Typical Savings |
|---|---|---|---|
| 100% (full load) | 100% | 102-103% | 0% (fixed speed wins) |
| 80% | ~88% | ~82% | 6-8% |
| 70% | ~85% | ~72% | 15-18% |
| 60% | ~82% | ~62% | 24-28% |
| 50% | ~80% | ~52% | 35-40% |
| 40% | ~78% | ~43% | 45-50% |
When Fixed Speed Is Actually More Efficient
VSD technology is not necessarily the case. In a full load situation, a fixed speed type of compressor is more efficient than the VSD. The argument could be because the VSD inverter dances energy efficiency between the range of 2% and 3%. Assume your rotary screw compressor operates at capacities of 90-100% and more often than not, a fixed speed rotary screw with an IE4 motor will be cheaper.
All you need to keep in mind is the 80% Rule. If your average compressed air demand does not exceed 80%, a VSD will generally outweigh all the costs. If the need for air is at 85% and 90% respectively, the capital costs will favor fixed speed compressors.
Understanding compressor specs? Our guide on CFM, PSI, and horsepower explains how to read compressor ratings and why full-load efficiency differs from part-load performance.

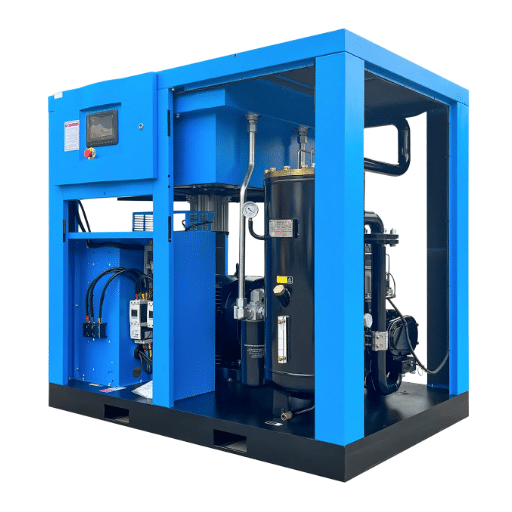

Energy Savings: The Real Numbers
How Much Does a VSD Compressor Actually Save?
The salient feature is that such units are capable of energy savings of 20-35% when compared to their standard siblings. When working in step-less control mode such VSD’ s energy-efficient PM motors can help save from 35% up to 50%.
For a 75 kW compressor running 6,000 hours per year at 0.12 per kWh, a 16,200 annually. Over ten years, that is $162,000 in electricity savings.
Savings at Different Load Levels
| Scenario | Fixed-Speed Annual Cost | VSD Annual Cost | Annual Savings |
|---|---|---|---|
| 50 HP, 50% load, 4,000 hrs/yr | $14,400 | $8,640 | $5,760 |
| 75 HP, 60% load, 6,000 hrs/yr | $32,400 | $21,060 | $11,340 |
| 100 HP, 70% load, 8,000 hrs/yr | $57,600 | $40,320 | $17,280 |
| 150 HP, 65% load, 8,000 hrs/yr | $86,400 | $56,160 | $30,240 |
Costs calculated at $0.12/kWh. Actual savings depend on your local electricity rate, load profile, and baseline compressor efficiency.
Permanent Magnet (PM) VSD: The Next Level
The compressor is of a VSD type using metal rotors with direct rotor-to-compressor drive. PM VSD compressors are energized via permanent magnet machines, which are of compact construction and very high efficiency even when operated at ultra-low speeds.
Conventional induction motors become very inefficient below 50% speed, whereas PM motors maintain both torque and efficiency at 15% speed. VSDs are rated to achieve 50-80% load at peak efficiency, understandable since compressors mainly operate at this speed. Even in this, the most critical load zone, PM VSD beats the standard VSD by 8-12%.
For factories with highly variable demand, PM VSD is the current efficiency frontier.
The Financial Case: ROI and Payback Analysis
Upfront Price Premium by Horsepower
VSD compressors typically cost 15-40% more upfront than fixed-speed equivalents. Here are approximate premiums for rotary screw compressors.
| HP | Fixed-Speed Price | VSD Price | Premium |
|---|---|---|---|
| 10 HP | $6,000-8,000 | $8,000-11,000 | $2,000-3,000 |
| 20 HP | $10,000-14,000 | $13,000-18,000 | $3,000-4,000 |
| 30 HP | $14,000-19,000 | $18,000-25,000 | $4,000-6,000 |
| 50 HP | $20,000-28,000 | $26,000-36,000 | $6,000-8,000 |
| 75 HP | $28,000-38,000 | $36,000-50,000 | $8,000-12,000 |
| 100 HP | $38,000-50,000 | $48,000-65,000 | $10,000-15,000 |
Prices are approximate and vary by manufacturer, features, and region.
Annual Energy Cost Comparison
| HP | Fixed-Speed Annual Energy | VSD Annual Energy (30% savings) | Annual Savings |
|---|---|---|---|
| 10 HP | $4,320 | $3,024 | $1,296 |
| 20 HP | $8,640 | $6,048 | $2,592 |
| 30 HP | $12,960 | $9,072 | $3,888 |
| 50 HP | $21,600 | $15,120 | $6,480 |
| 75 HP | $32,400 | $22,680 | $9,720 |
| 100 HP | $43,200 | $30,240 | $12,960 |
Calculated at $0.12/kWh and 4,000 operating hours per year (two shifts). Adjust for your electricity rate and hours.
Payback Period Formula
The calculation is straightforward.
Payback (years) = VSD Price Premium / Annual Energy Savings
Example: A 50 HP VSD premium is 7,000. Annual energy savings are 6,480. Payback = 7,000/6,480 = 1.08 years, or approximately 13 months.
5-Year TCO Breakdown
| Cost Component | Fixed Speed (50 HP) | VSD (50 HP) |
|---|---|---|
| Upfront purchase | $24,000 | $31,000 |
| Annual energy (4,000 hrs) | $21,600 | $15,120 |
| 5-year energy total | $108,000 | $75,600 |
| 5-year maintenance | $5,000 | $5,500 |
| 5-Year Total Cost | $137,000 | $112,100 |
| Net Savings with VSD | $24,900 |
After the 13-month payback, the VSD saves $6,480 every single year.
Reliability and Maintenance
VSD Maintenance Requirements
Until now, maintenance of operated VSD has been similar to that with fixed-speed machines. Many of the tasks are similar and spread into three groups, which are oil change, filter change and entry element change, e.g., the belt’s appearance. However, single change with the VSD is an oil change, except for this, also an inverter drive.
It is mandatory that the Inverter drives do function in a clean environment where they can operate normally without interruptions. Any dust, extreme hot or cold weather, as well as water, could degrade the output of the inverter. Ideally, the vast majority of inverter manufacturers’ products are typically rated for 50,000 to 100,000 operational hours.
Fixed Speed Maintenance Requirements
The construction of fixed-speed compressors consists of elementary electrical systems. There is no inverter in the system. There is also no electronics for changing the speed. Typically, the control system is only a pressure switch, which is sometimes coupled with a load/unload control. This simplicity means there are not that many electronic components available, a fail-safe basis.
VSD-Specific Risks: Harmonics, Cooling, and Inverter Life
VSD compressors are not without risks. Every buyer should understand these limitations.
Electrical harmonics. Variable speed drives generate non-linear electrical current due to the third and subsequent octaves of the frequency of the first harmonic: this can be a problem in facilities with sensitive or precision equipment. Although most up-to-date drives have a harmonic compensation provision. A plant where the old drives are used with an old electrical network should take into consideration the advice of an electrician for installing a large VSD compressor.
Motor cooling at low speeds. At very low speeds, the motor’s built-in fan moves slowly which can result in improper cooling. This problem is counteracted in the PM-based VSD motors having an independent cooling section. However, VSD motors under construction application may need to be limited concerning the sustained low-speed regulation of their duties.
Inverter replacement cost. In case the inverter stops functioning for reasons not covered by the warranty period, the cost can range from $2,000 to $6,000 according to the capacity. Such a case does not arise for fixed-speed compressors.
Minimum run thresholds. With VSD compressors, one has to ensure that they do not have a short pump-up and pump-down period. The inverter takes its toll with every run/stop operation. Usually, units are expected to run for not less than 10-20 minutes for each pump-up and pump-down cycle.
When VSD Electronics Fail
The failure of the inverter is known to be the most expensive repair task when it comes to the VSD in particular. The first five years’ inverter drives currently available in the market possess a failure rate of less than 2%. Handling failures in the first category is easy. However, in hot, dirty, and moist environments, failure rates of the inverters rise drastically.
In the case of involving severe conditions such as high dust levels, extreme temperatures, or high vibration, a fixed-speed compressor can represent the best long-term alternative, even though it might have a higher operating cost than a variable-speed compressor.
Multi-Compressor Strategy: The Hybrid Approach
Fixed-Speed Base Load + VSD Trim
The most energy efficient arrangement of several compressors is the fixed-speed base load units and a VSD compressor used for the variable trim load.
How it works: Calculate the minimal continuous flow rate. Capacity one or more fixed-speed compressors to manage the baseline within the 90-100% limits. Integrate a VSD compressor in the expansion section, sized for surplus peaking over the baseline value. The fixed machinery is efficient at full load very much like the VSD which changes the speed accordingly.
Master Controller Sequencing
This is where a master controller assembles the sequence of enlistments. It turns off and on constant speed compressors as needed and runs them on full load in the meantime. It allows the VSD to manage variable output after the constant speed compressors have reached their limits. If the demand is low, those fixed compressors which are not required to run are turned off, and the VSD is left to operate everything.
Why This Often Beats All-VSD or All-Fixed
Going all out with VSD equipment to control everything is an immediate gatherer of funds with its embedded inverter circuit costs, which is hardly suitable for a base load. In contrast, applying all fixed equipment generates extra costs for the part of the volume shrinkage. A hybrid conception combines corresponding film ratios where both variants are necessary.
A metal fabrication shop filled three different compressors in operation: two units of fixed speed with thirty drives each (30 HP) and one unit of VSD, also with 30 drive power. The units of constant speed catered to the fixed 45 CFM set point while the lower speed unit catered to the higher values that changed between 10 and 35 CFM. The overall electrical cost was 28% lower in cumulative terms compared with switching on all three compressors using the fixed speed compared to switching on all three compressors. The overall cost also increased as opposed to replacing all the units with VSD’s.
Need help sizing a multi-compressor system? Our guide on what size air compressor you need includes a step-by-step demand calculation method.
Decision Matrix: Which Technology Fits Your Factory?
Choose VSD If:
- Your average compressed air load is consistently below 80%
- You operate more than 3,000-4,000 hours per year
- Your demand fluctuates significantly between shifts or processes
- You want stable pressure for precision applications
- You are replacing an oversized fixed-speed unit
- Energy costs are a major concern
Choose Fixed Speed If:
- Your compressor runs at 90-100% load continuously
- You operate fewer than 2,000 hours per year
- The compressor serves as a backup or standby unit
- Your environment is harsh (extreme dust, heat, or vibration)
- Your budget cannot accommodate the VSD premium
- You have stable, predictable demand with minimal variation
Factory Scenario Quick Reference
| Factory Profile | Recommended Technology | Why |
|---|---|---|
| Textile factory, variable loom demand, 2 shifts | VSD (PM preferred) | High part-load time, fast payback |
| Cement plant, 24/7 constant baseload | Fixed speed (IE4 motor) | Near-full load, no VSD benefit |
| Metal fabrication, mixed shifts, batch work | Hybrid: fixed base + VSD trim | Optimizes both stable and variable demand |
| Small workshop, 1 shift, intermittent use | Fixed speed | Low hours, VSD payback too long |
| Food packaging, 3 shifts, clean environment | VSD (PM preferred) | Stable pressure critical, energy savings high |
| Mobile construction, dusty site | Fixed speed | Harsh environment, simple is reliable |
| Automotive paint shop, precision critical | VSD | Tight pressure band improves finish quality |
Frequently Asked Questions
What is the difference between VSD and fixed speed compressors?
A trim is an additive process that occurs on materials or products that have already gone through the primary functions or fabrication cycle. Other points of interest with regard to the VSD option are the availability of spares both in the country and directly from the factory and support issues from the company that supplied the equipment.
Is a VSD compressor worth the extra cost?
For variable demand applications conceptualized at more than 3,000-4,000 hours per annum, yes. The average break-even time is 1-3 years but sometimes below 12 months. Ever since where the investment is recouped, money is saved every year by the variable frequency drive. If the application is a constant full load or very low running hours, the premium might not be relevant.
How much energy does a VSD compressor save?
The usual margin of savings ranges 20% up to 35%, as is the case with standard motors with an extensive variation of demand. PM VSD units with a high efficiency can demonstrate savings of up to 35% and 50%. Of course, it varies to some extent based on how much the load influences monthly bills.
When should I use a fixed speed compressor?
Opt for fixed speed if the compressor typically runs between 90 and 100 percent load regardless of operation hours, if within 2000 operation hours per year, if the unit is located in a place where it will not be required to operate regularly, or where harsh conditions do not allow the use of inverter technologies in electronics.
What is the payback period for a VSD compressor?
The return period is usually 1-3 years. Sectors with high demand and consumption, which also experience significant demand oscillations, make their money back in 8-18 months. In low-usage facilities, it could be slightly higher, 2-3 years. Calculate your payback by exact numbers with the following equation: VSD Premium divided by Annual Energy Saving.
Conclusion
VSD compressors rule out for variable demand factory applications because there biggest culprit in compressed air systems: no loaded condition is present. A fixed speed compressor doing no work with the motor at full speed is just like a car standing at a traffic light with the engine running and the foot on the gas pedal. A VSD is a car that manages to reduce its engine power.
However, VSD always comes with adjunct disadvantages. When the compressor operates at more than 95% of its capacity most of the time, the use of VSD inverter is more costly and complicated and the benefits of its installation are not worth mentioning. There is a traditional machine with a modern IE4 motor that is less expensive and slightly more efficient at full capacity operation.
The prescribed approach is always choosing the solution best fitting your operations. A lower demand of less than 80% of the average load has been calculated to provide advantages in VSDs over fixed-speed air compression. For a higher demand of more than 85% of the average load the fixed speed is recommended. More often than not systems with several compressors require a compromise: fixed speed machines for the baseload and VSD for the trim.
